First, the scope

DZ47Z-63 series photovoltaic DC miniature circuit breaker applies to the rated current of 63 or less, DC rated voltage 125V, 220V, 440V line, the DC transmission and distribution systems for facilities and electrical equipment overload , infrequent conversion of short-circuit protection and the link with. Product appearance, standard rail mounting, with a show-off. Terminals and down all wiring function, wiring must pay attention to "+/-" polarity for 440V three-pole circuit breakers, the balance is positive circuit diode connected in series. The circuit breaker can also be installed auxiliary contacts, alarm contacts shunt release and other accessories, it is widely used in communications, batteries, locomotives and other industries.
Small DC circuit breaker in line with IEC60947-2-1997, GB14048.2-200.1 standard & nbsp;

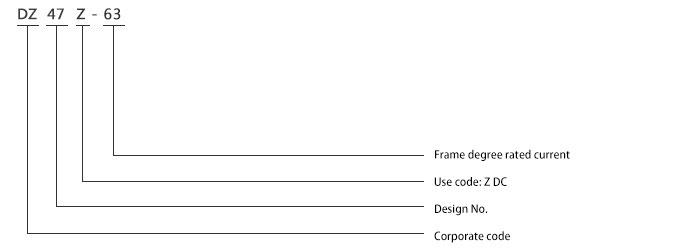

Second, model and specification

Third, the working conditions

◇ installation site altitude less than 2000m;
◇ ambient air temperature is not higher than the positive negative forty degrees Celsius is not less than five degrees Celsius; and an average daily temperature of not more than thirty-five degrees positive (except special orders)
◇ installation location relative humidity. The maximum temperature does not exceed fifty percent positive forty degrees Celsius, at a lower temperature allows a higher relative humidity, for example twenty degrees Celsius over 90 percent. Condensation temperature change from the dry to produce the occasional special measures should be taken.
◇ in the air no danger of explosion of media and not enough to corrode metal and damage the insulation of gas and conductive dust areas.
◇ no rain and snow.
◇ Pollution level III.
◇ Installation Category: Installation category for the main circuit breaker Ⅲ, not connected to the auxiliary circuits and control circuits for the main circuit installation category Ⅱ.

Fourth, the structural features

DZ47Z-63 DC miniature circuit breaker is a new product in the MCB, based on research and development. Using magnetic blow interrupter characteristic arcing time is short, high breaking capacity, reliable performance. & Nbsp;

Fifth, the main parameters and technical performance

frame degree rated current lnm (A)	Poles	DC rated voltage (V)	rated current ln (A)	Rated ultimate short-circuit capacity
				breaking current lcu (A)	time constant T (ms)
63	1P	DC240 (relatively neutral)	1,2,3,4,6,10,16,20,25,32,40,50,63	6000	10
		DC110 (relative to the middle of the ground conductor or relatively neutral)
		DC240 single-phase (phase to neutral line) or three-phase (three-pole circuit breaker) (three-wire or four-wire)
	2P	DC220/440 single-phase (opposite phase)
		DC110/240 single-phase (opposite phase, three-wire)

Test	instantaneous release type	dc test current	initial state	trip or no trip limit	Expected Results	Notes
a	B, C	1.13ln	cold	t≥1h (ln≤63A)	not release
b	B, C	1.45ln	followed by a term	t <1h (ln≤63A)	trip	current steady rise in the 5s
c	B, C	2.55ln	cold	1s 1s 32A)	trip
d	B, C	4ln	cold	1s≤t≤60s (ln≤32A) 1s≤t≤120s (ln> 32A)	trip	closed auxiliary switch power
		7ln		1s≤t≤15s (ln≤32A) 1s≤t≤30s (ln> 32A)
e	B, C	15ln	cold	t <0.1s	trip

Six, shape and installation dimensions

Seven, ordering instructions

When ordering indicate the following points:
Product type and name: If DZ47Z-63 DC breaker /DZ47Z instantaneous trip miniature circuit breakers DC Rated current: as 16A.
Poles: 2
Order Number: as 2130.
Ordering example: DZ47Z DC miniature circuit breaker , 1P, 63A, 2160 只.
