First, the scope

YDM1LE series plastic shell leakage circuit breaker ( CM1LE Molded Case Circuit Breaker ), applicable to the exchange 50Hz, rated working voltage 400V, rated current up to 630A circuit, do not frequent conversion purposes. Circuit breaker with overload, short circuit and under voltage protection device to protect the circuit and power equipment from damage. Leakage protection may provide indirect protection of personal contacts. Also provides protection device leakage current due to circuit or ground fault. Molded Case leakage circuit breakers dimensions, installation dimensions and CM1 MCCB same frame degree identical.
CM1LE molded case circuit breaker according to its rated breaking capacity limit of the circuit breaker (lcu) are divided into high and low: M-type (high breaking type), H type (high breaking type) categories. The circuit breaker has small size, high segmentation, arcing short, anti-vibration characteristics.

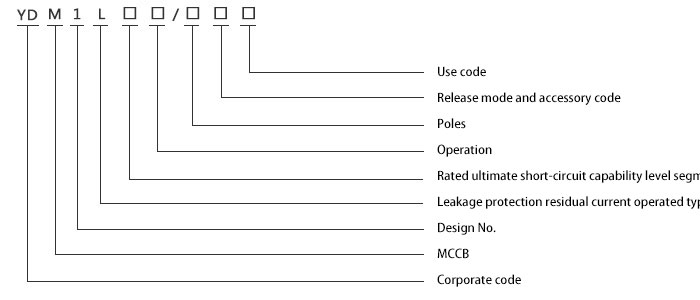

Second, model and specification

Note:
1. handle direct operation no code, rotating operation in Z, electrically operated with P expressed;
2. only do isolated without tripping the circuit breaker to 000 means;
3. Motor protection circuit breaker 2, said power distribution with no code;
The four-pole circuit breaker neutral pole (N pole) structure code;
Type A: N pole not installed overcurrent tripping element, and N pole is always connected not with the other three poles combined points;
Type B: N pole not installed overcurrent tripping element, and the N pole and the other three poles combined points;
Type C: N pole installed current trip element, and the N pole and the other three poles combined points;
Type D: N pole installed current trip element, and N pole is always connected not with the other three poles combined points;

Third, the product features

Leakage protection module routine sampling circuit breaker operating power for the two-phase, three-phase circuit breaker in this series, if the lack of any phase, the circuit breaker can still work;
Rated residual operating current l △ n and maximum off time is adjustable according to the scene century;
When phase voltage is reduced to 50V, leakage protection module still work;
Has a leak alarm output function;
Overall size and CM1 molded case circuit breaker is installed with the same specifications, with better call sex.

Fourth, the release mode and accessories code

Attachment Name	instantaneous release	double release
No	200	300
alarm contacts	208	308
shunt release	210	310
auxiliary contacts	220	320
undervoltage release	230	330
shunt release + auxiliary contacts	240	340
Shunt trip + Undervoltage release	250	350
Two groups of auxiliary contacts	260	360
undervoltage release + auxiliary contacts	270	370

Disconnect time circuit breaker & nbsp;

Residual current		l △ n	2l △ n	5l △ n	10l △ n
Non-delay type	Maximum off time (s)	0.2	0.1	0.04	0.04
Delay Type	the maximum off-time (s)	0.5/1.15/2.15	0.35/1/2	0.25/0.9/1.9	0.25 / 0.9/1.9
	Limit inactivity time (s)	-	0.1/0.5/1	-	-

Fifth, the main parameters and technical performance

Frame current lnm (A)		100		225		400		630
Type		YDM1L-100		YDM1L-225		YDM1L-400		YDM1L-630
Rated current ln (A)		16,20,25,32,40,50,63,80,100		100,125,140,160,180,200,225		225,250,315,350,400		400,500,630
Poles		3P/4P
Rated insulation voltage Ui (V)		AC800V
rated voltage Ue (V)		AC400V
Rated impulse withstand voltage UImp		8000V
nominal frequency		50Hz
arcing distance		≤50mm				≤100mm
Rated ultimate short-circuit breaking capacity lcu		35		35		50		80
rated short-circuit breaking capacity lcs		22		25		35		35
Rated residual operating current l △ n		100/300/500mA						300/500/1000mA
Rated residual non-operating current l △ no		1/2l △ n
operating performance (times)	electrical life	1500		1000		1000		1000
	Mechanical life	8500		7000		4000		4000
Accessories (optionally)	shunt release	●		●		●		●
	undervoltage release	●		●		●		●
	auxiliary contacts	●		●		●		●
	alarm contacts	●		●		●		●
	turn the handle operating mechanism	●		●		●		●
	electric operating mechanism	●		●		●		●
Dimensions	A	92	122	107	142	150	198	210	280
	B	150		165		257		280
	C	110		110		146.5		155
	D	92		90		106.5		115.5
dimensions	a	30	60	35	70	44	88	70	140
	b	129		126		194		243
	φd	5				7

Six, Order Information

When ordering indicate the following points:
Product type and name: If TXM1L-400 ( CM1L MCCB )/YDM1-150 Molded Case leakage circuit breakers rated current instantaneous trip: as 400A.
Poles: 4P
Order number: eg 90.
Ordering example: YDM1L leakage circuit breakers & nbsp; CM1L Molded Case Circuit Breaker , 3P + N, 500A, 65 只.
